A silent diesel generator set is a 10–20 year asset, but the gap between the machine on paper and the machine in the crate is often wider than the price difference suggests. For B2B buyers, every dollar saved on the quotation can turn into weeks of downtime, customs seizures, or noise complaints on site.
This checklist walks you through the technical and commercial checks you must complete before paying — from verifying the engine serial number to reading the export documents line by line. It is built on the factory-floor experience of Alex Zhang, CEO of GoCommins, an authorized Cummins OEM with more than 20 years in the industry.
1. Verify the Engine Before You Believe the Nameplate
The engine accounts for 60–70% of the total cost of a genset, which makes it the first place dishonest suppliers cut corners. Two sets that both say “Cummins-powered” can hide completely different hardware inside the canopy.

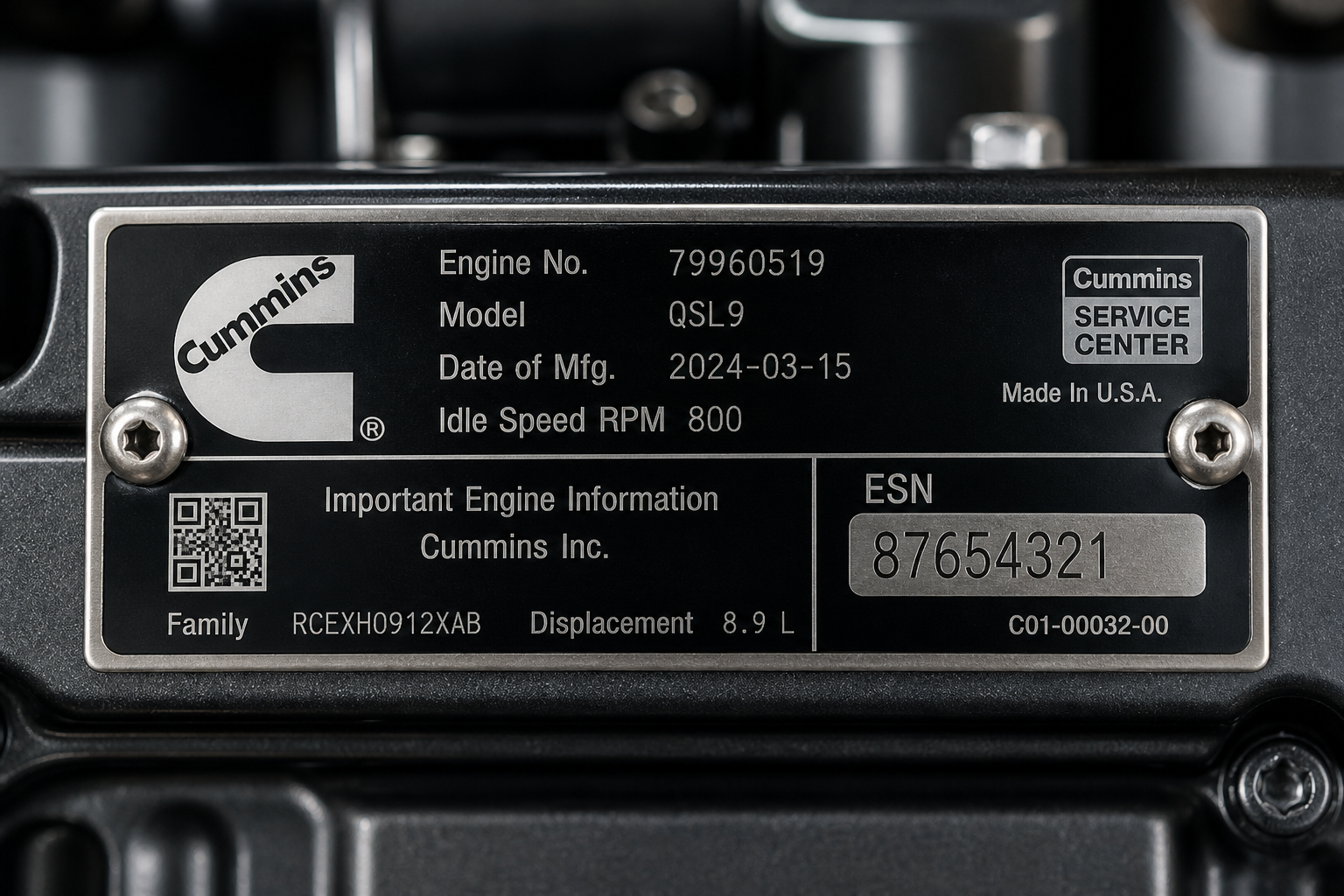

- Check the ESN: Every genuine Cummins engine carries a unique Engine Serial Number (ESN) on a laser-etched metal nameplate. Verify it through the Cummins QuickServe portal or the official Cummins genuine parts database before you sign the purchase order.
- Demand authorization: An authorized OEM like GoCommins holds an official Cummins Authorization Certificate and sources zero-hour engines directly from the Cummins G-Drive network — with global warranty coverage.
- Beware replica plates: A peeling label, a blurry logo, or irregularly aligned numbers are classic signs of a fake ESN plate. Ask for factory photos of the nameplate before shipment.
- Match the model: Confirm the engine model (for example, Cummins QSL9) matches the nameplate in the factory photos and the quotation.
2. Audit the Canopy — “Silent” Is a Specification, Not a Label
“Silent type” costs money; measured decibels cost nothing to verify. The canopy is where budget quotations quietly downgrade the specification.
- Steel thickness: GoCommins builds its canopies from 2.0mm–4.0mm cold-rolled steel. A budget quote may ship 1.0–1.5mm panels that vibrate instead of dampening sound — often amplifying low-frequency noise beyond 80dB.
- Insulation: Demand high-density, fire-resistant mineral wool — not flammable acoustic foam.

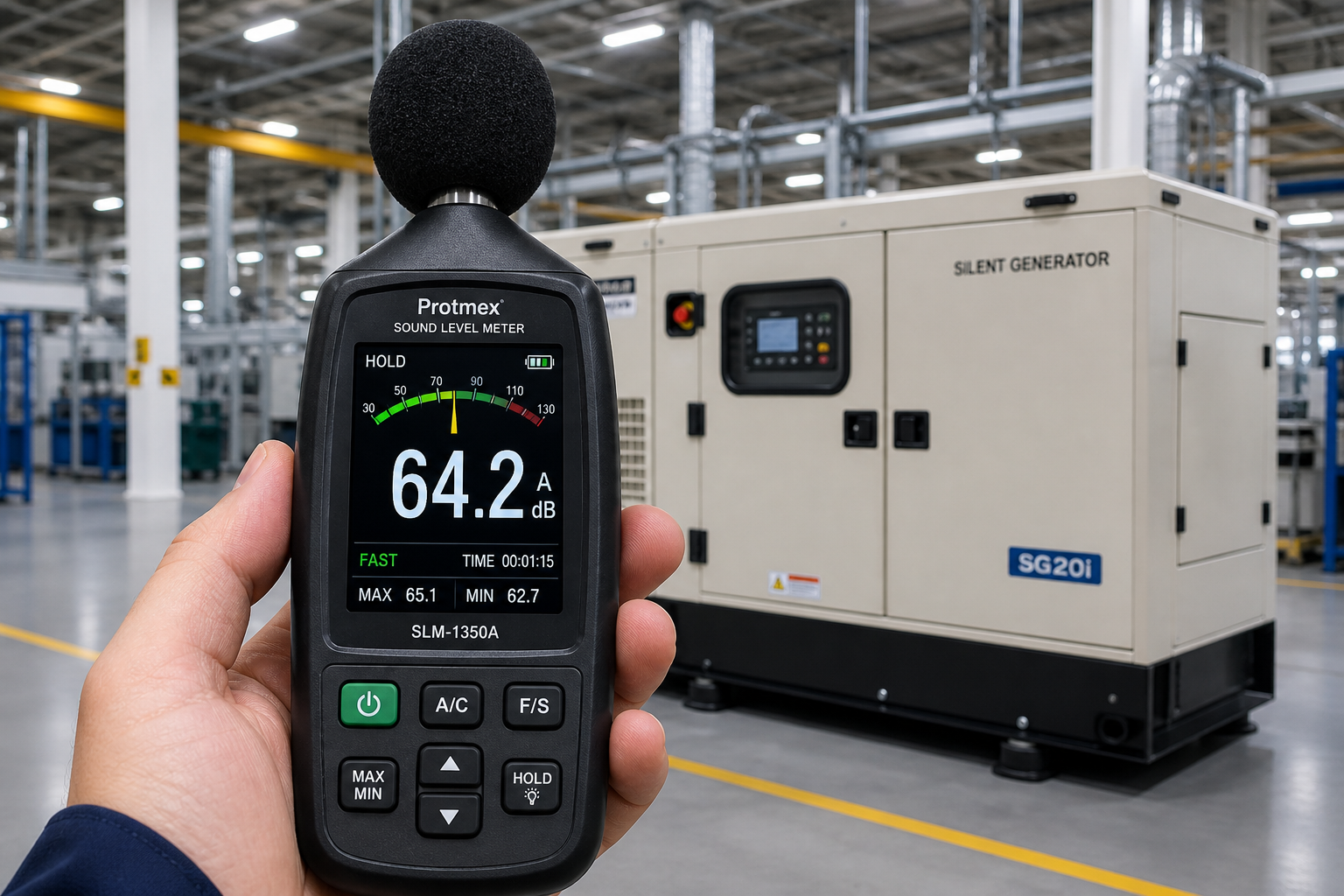

- Test report: We guarantee ≤65dB(A) at 7 meters, supported by an independent third-party noise test report — not a brochure number. Ask the supplier to show you a live measurement, like the 64.2dB(A) reading in the photo above.
- Intake path: Our proprietary “Labyrinth Baffle” intake system forces sound waves through multiple corners, killing noise at the source.
3. Check the Controller and the Control Cabinet
The control system decides how the set behaves in an outage — auto-start, ATS integration, and remote monitoring are what keep your site online when it matters.
- Controller brand: Compare Deepsea, SmartGen, or ComAp controllers against a bare manual panel. Budget quotes often list “LCD display” while delivering a start/stop module with no monitoring.
- Voltage and frequency: Confirm 220V/380V versus 400/231V, and 50Hz versus 60Hz, on both the alternator and the panel — the quotation must match your site standard.
- Remote monitoring: SMS, email, web dashboard, or mobile-app access is standard for overseas buyers — put it in the quotation, not just in the sales chat.

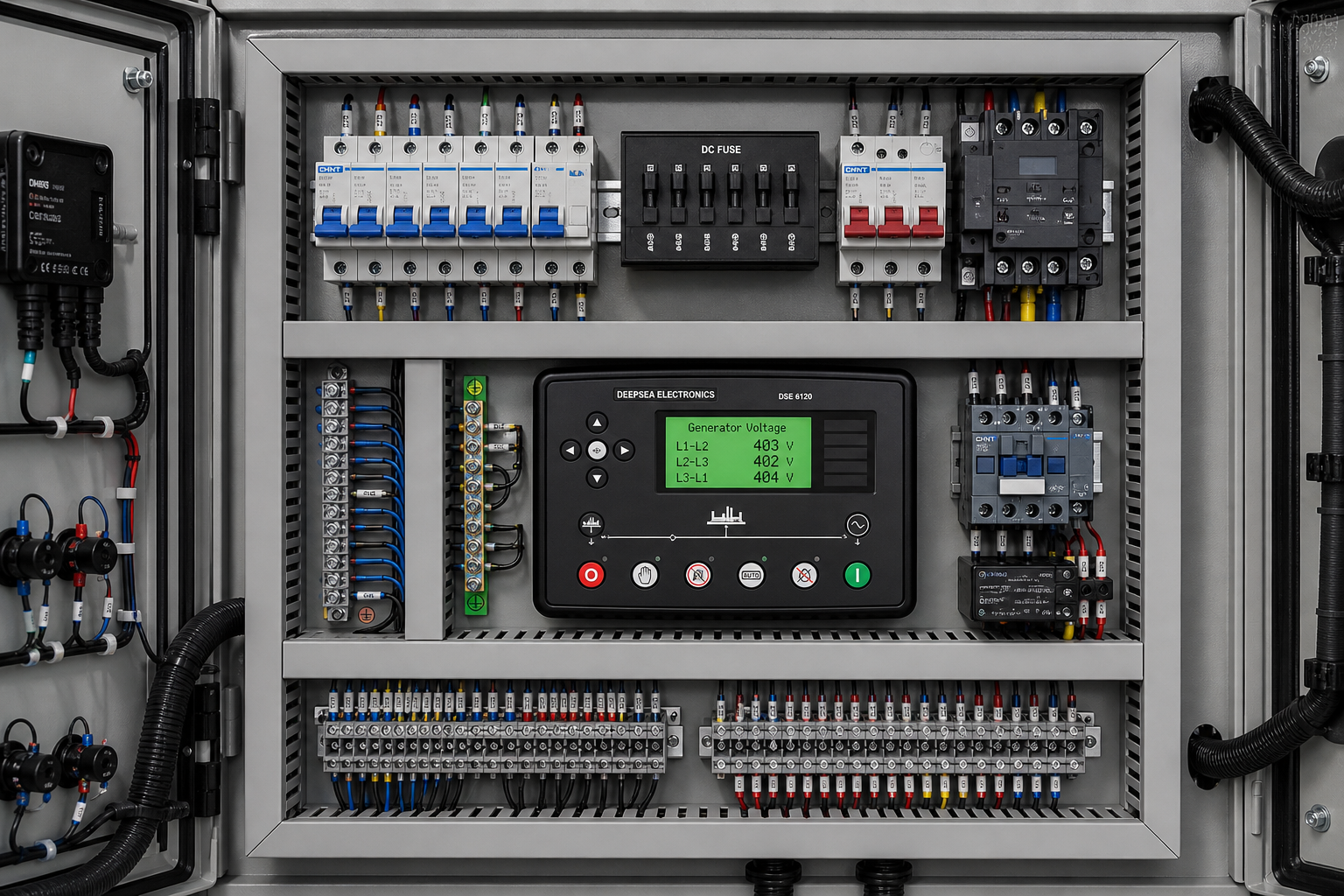

- Wiring quality: Ask for photos of the open control cabinet. Numbered terminals, color-coded cables, and tidy ducting (as in a DSE 6120 panel) signal a factory that takes quality seriously.
4. Demand the Full Load Test Report
A generator that has never been loaded is a generator that has never been proven. Every GoCommins set is load-tested before it ships — and you should see the numbers.

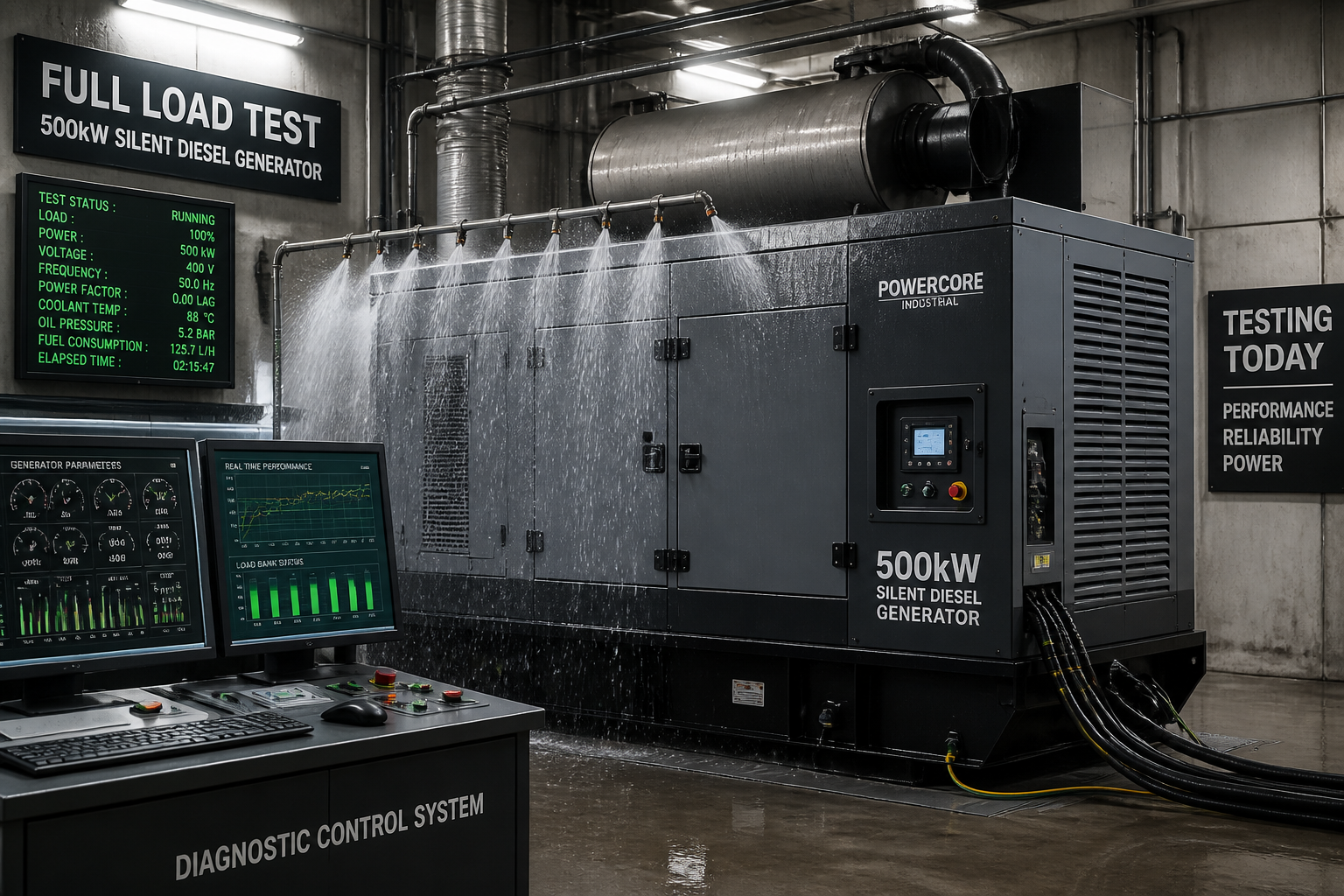

- 100% load test: The set must run at full rated load for a documented period, with power, voltage, frequency, coolant temperature, oil pressure, and fuel consumption logged in real time.
- Test parameters: For a 500kW set, expect readings like 500 kW / 400 V / 50.0 Hz, coolant temp ~88°C, oil pressure ~5.2 bar — verify these against the datasheet.
- Live or video walkthrough: GoCommins welcomes live video walkthroughs and third-party inspection before shipment. If a supplier hesitates on this, that is your answer.
5. Read the Export Documents Before You Pay
Certifications decide whether your container clears customs — or sits at the port. This is where forged and photocopied documents surface.

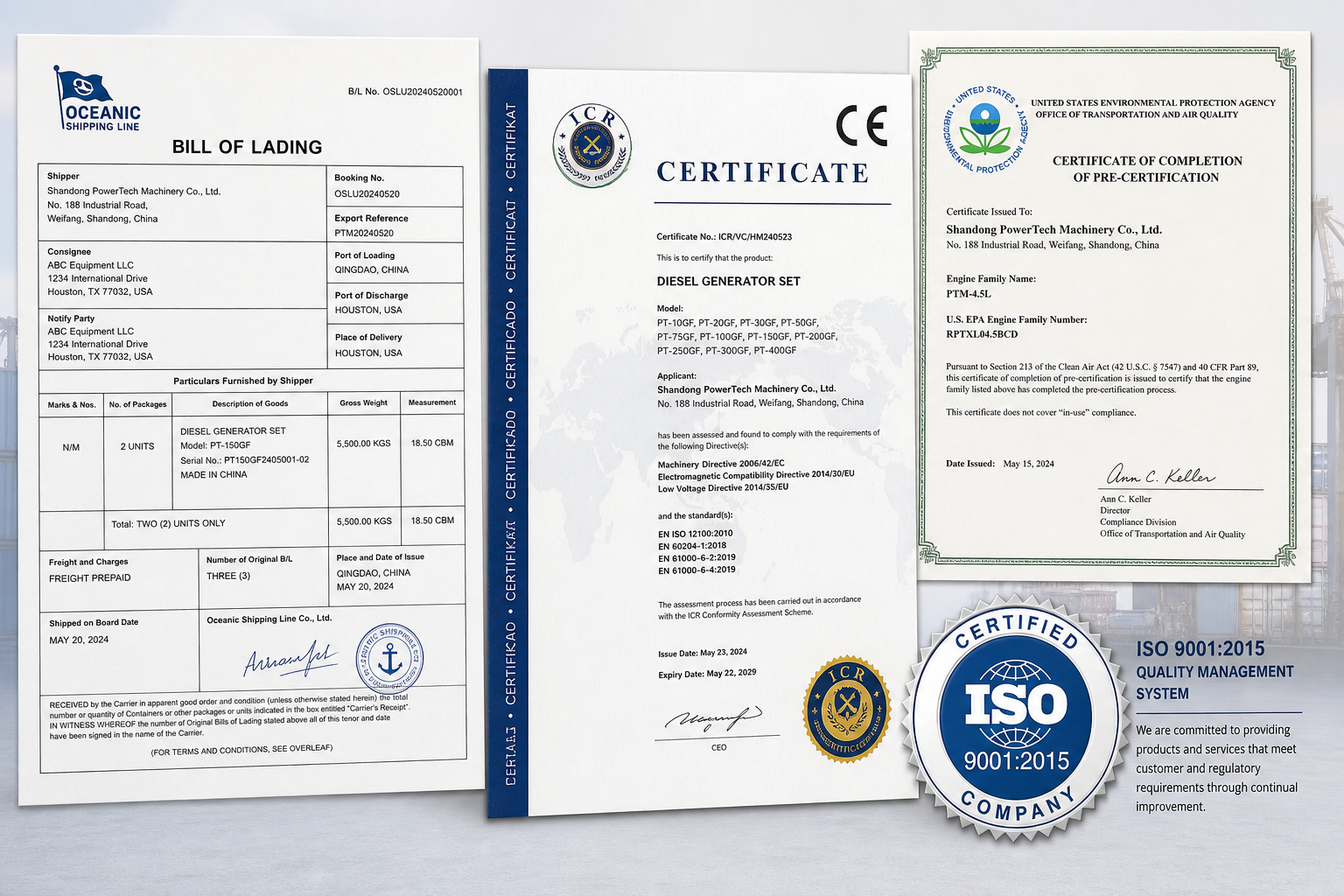

- CE: Verify the certificate number, the model list, and the applicable directives (Machinery 2006/42/EC, EMC 2014/30/EU, Low Voltage 2014/35/EU) and standards (EN ISO 12100, EN 60204-1).
- EPA: For North American markets, check the U.S. EPA engine family number on the certificate matches the engine family on the nameplate.
- ISO 9001: Confirm the certificate is current and issued to the actual manufacturing entity — not a trading company.
- Verifiable numbers: Every document must carry a file number you can check. GoCommins provides verifiable CE, EPA, ISO9001, UKCA, and RoHS certifications with every export order.
6. Inspect Packing, Incoterms, and Shipping
The price on the quotation is not the price at your port. Payment terms, packing, inspection, and Incoterms decide the final landed cost.
- Incoterms: EXW vs. FOB vs. CIF — clarify who pays for port handling, freight, and insurance before you compare totals.

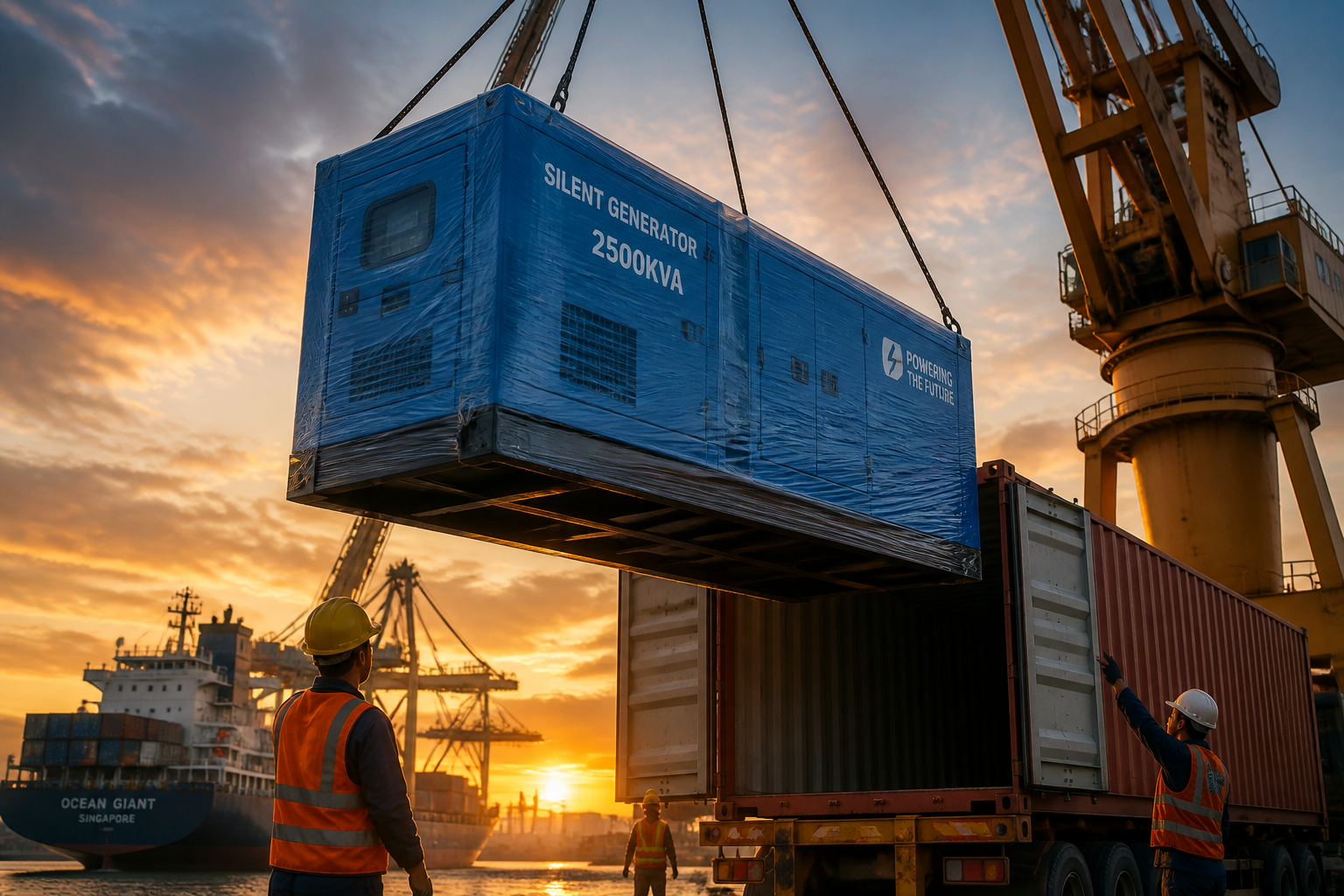

- Export packing: Units must be wrapped in protective film, secured on steel base frames, and properly braced inside the container — so they arrive as tested.
- Bill of lading: Cross-check the B/L description (model, serial number, quantity, gross weight, CBM) against the packing list before it is issued.
- Lead time: At GoCommins, standard custom orders are typically completed in 2–4 weeks. Middlemen often quote 6–8 weeks because they lack production control.
7. Walk Through a Pre-Delivery Checklist
A disciplined supplier inspects every unit against a documented checklist before it leaves the factory. Ask to see theirs — or better, walk through it together on a live video call.
- Engine: Oil level, coolant level, air filter condition, belts and hoses, no leaks.
- Fuel system: Fuel level, fuel leaks, fuel filter / water separator.
- Electrical: Battery voltage and connections, control panel indicators, emergency stop function, alarms.
- Generator: Breaker position, output connections, earthing / grounding, ventilation.
- Operational: Start test (no load), voltage output, frequency, noise level, vibration check.
B2B Sourcing Tips from Our CEO
Alex Zhang, CEO of GoCommins: “After 20 years in this industry, I tell every buyer the same thing: buy the set the way you audit a balance sheet — item by item, never just on the total. Verify the ESN, measure the decibels, read the load test report, and read the export documents. If a supplier hesitates on any single check on this list, that is your answer. Walk away.”
Technical Checklist: What to Verify Before You Pay
| Check Item | What to Verify | GoCommins Standard |
|---|---|---|
| Engine authenticity | ESN on nameplate vs. QuickServe database | Genuine Cummins G-Drive, ESN verifiable |
| Canopy silence | Steel gauge, insulation, third-party noise report | ≤65dB(A) @ 7m, 2.0–4.0mm steel + mineral wool |
| Controller | Brand, auto-start, ATS, remote monitoring | Deepsea / SmartGen / ComAp, remote monitoring |
| Load test | 100% load run with logged parameters | Full load test report shipped with every unit |
| Certifications | CE, EPA, ISO9001, UKCA, RoHS — verifiable numbers | Verifiable certificates included |
| Export packing | Film wrap, steel base, container bracing, B/L match | Export-grade packing, inspection welcome |
| Lead time | Production control vs. middleman quotes | 2–4 weeks |
| Warranty | Global coverage in writing | 2-year global warranty |
FAQ: Buying a Silent Diesel Generator Set from China
1. How do I verify a Cummins engine is genuine before buying?
Locate the Engine Serial Number (ESN) on the engine nameplate and verify it through the Cummins QuickServe portal or your local Cummins authorized service center. An authorized OEM can also provide its Cummins Authorization Certificate and the original G-Drive purchase records.
2. What noise level should a silent diesel generator set meet?
A genuine silent genset should measure ≤65dB(A) at 7 meters, supported by a third-party test report. Ask the supplier to demonstrate the measurement live or on video — anything above 75–80dB means the canopy is doing very little work.
3. Why do quotations for the same kW vary so much?
Because the same kW can hide completely different hardware: a generic engine, a no-name alternator, thin canopy steel, and no remote monitoring cost far less than a set built with genuine Cummins, Stamford, and a certified silent canopy. Compare every line item — not just the total price.
4. Which export documents should I request before payment?
At minimum: the CE certificate with the model list, the EPA certificate (for North America) with the engine family number, the ISO 9001 certificate of the manufacturer, the packing list, and a draft bill of lading. Verify every certificate number before transferring payment.
About the Author: Alex Zhang
Alex Zhang is a veteran in the power generation industry and the CEO of GoCommins. With over 20 years on the factory floor and a background in mechanical engineering, Alex specializes in the R&D of ultra-silent diesel gensets and high-altitude power stability. He has successfully delivered over 5,000 power solutions to critical infrastructure projects across the Middle East, Southeast Asia, and Africa.
